Panel Dimensions
| Profile Widths | 4", 6", 8" |
| Standard Lengths (Wood-Look) | Up to 20 ft |
| Standard Lengths (Solid Color) | Up to 24 ft |
| Panel Depth | 1-1/4" |
| Wall Thickness | 0.062" (16 gauge) |
Material
| Alloy | 6063-T5 Aluminum |
| Temper | T5 |
| Tensile Strength | 22 ksi minimum |
| Yield Strength | 16 ksi minimum |
Wood-Look Finish
| Application | Sublimation thermal transfer |
| Base Coat | Thermosetting powder coat |
| UV Resistance | AAMA 2605 Equivalent |
| Thickness | 2–3 mil |
Anodized Finish
| Process | Architectural anodize |
| Anodize Class | Class I (0.7 mil min) |
| Standard | AAMA 611 |
| Salt Spray Resistance | 3000 hours |
Powder-Coated Finish
| System | Thermoset polyester |
| Standard | AAMA 2604 |
| Film Thickness | 2.5–3.5 mil |
| Gloss Level | 25–40 GU (semi-matte) |
| Humidity Resistance | 3000 hours |
Performance
| Temperature Range | -40°F to +180°F |
| Fire Classification | Non-combustible (per IBC) |
| Thermal Expansion | 1/16" per 10 ft per 100°F |
| Coastal Suitability | Yes (AAMA coastal rated) |
Technical Drawings
Profile Cross-Sections
Engineering cross-section drawings for each panel profile width.

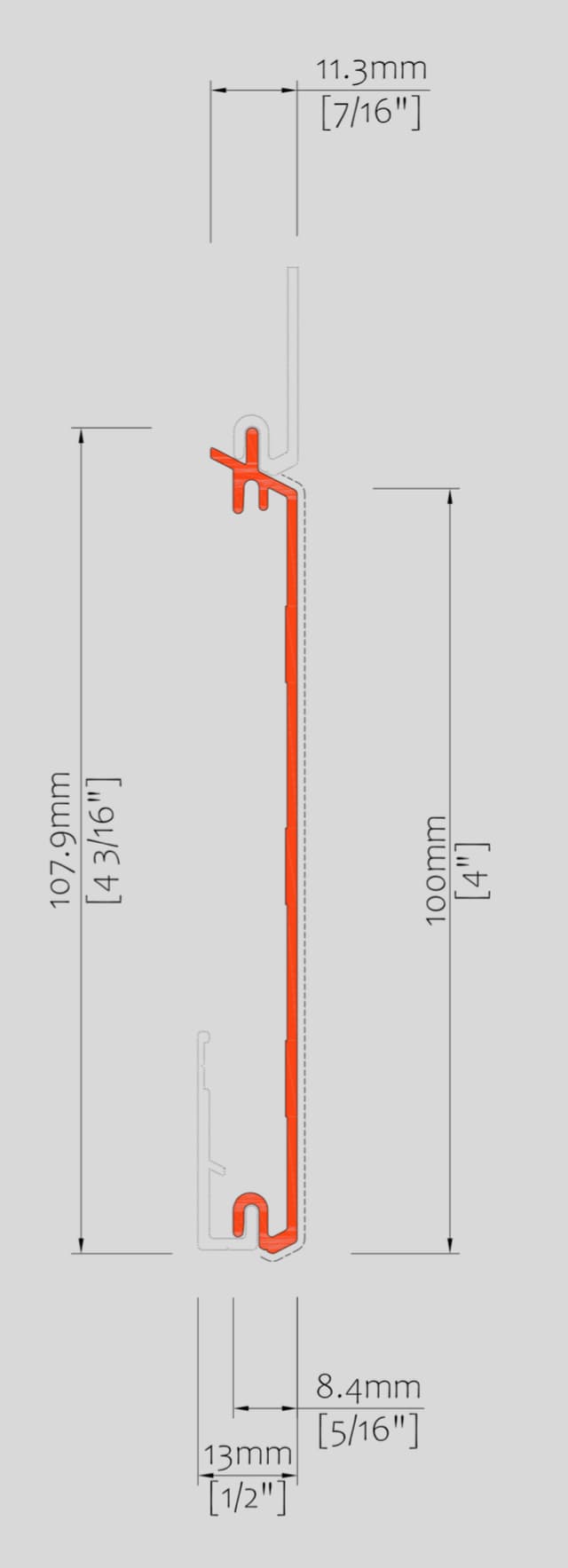

4" Profile

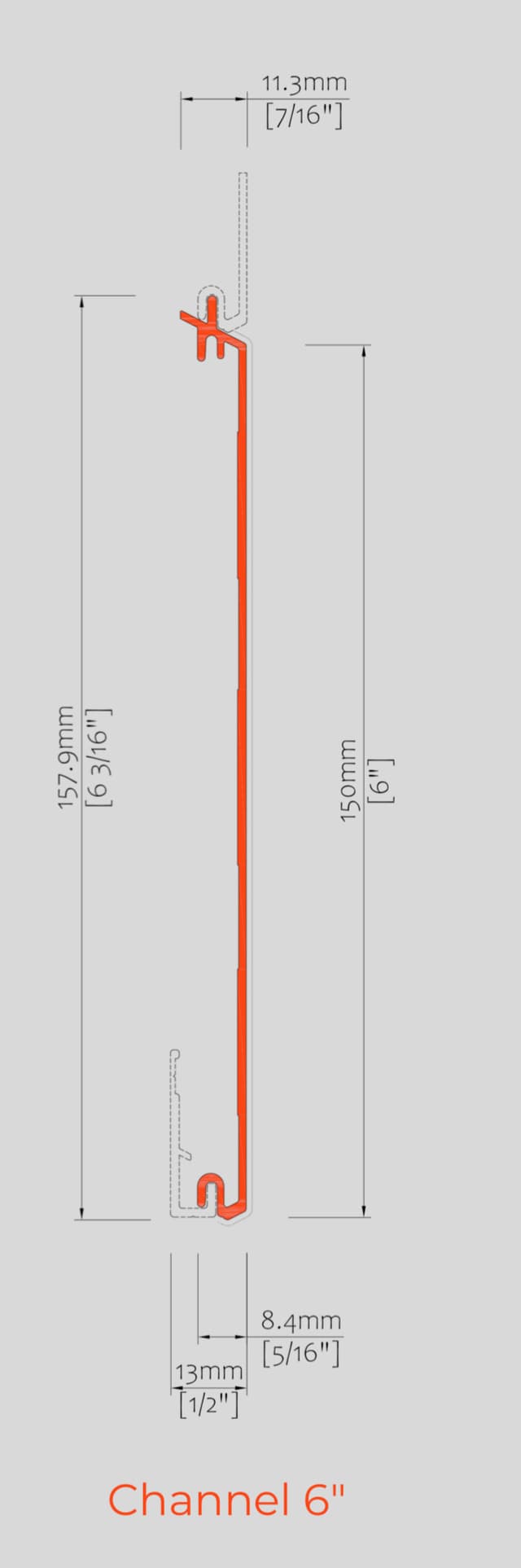

6" Profile
8" Profile
